The following letter and pictures were received from John on November
30, 2003:
From: John Ricciotti
To: [ISPA]
Sent: Sunday, November 30, 2003
Subject: Control panel cover & water rudder notes
Hi Brent,
Just a quick note to follow up on the post [997] I just made on the control
panel cover that Graham Woodd can make in his Seattle shop.
I've attached a picture of the finished part below.
I would also like to submit some photos of a different water
rudder design that I learned from Scott Devlin. It uses an extra bulkhead to
make the entire pulley area watertight and not worry about snorkel tubes and
such. I will write up a lengthy letter of what I have learned if you want to
post it in the builder's tips area.
Thanks,
John
Above: Graham Woodd holding the glare shield that he fabricates for Seawinds.
Wally Weller's Seawind can be seen in the background.
See post 997 in the "Hangar."

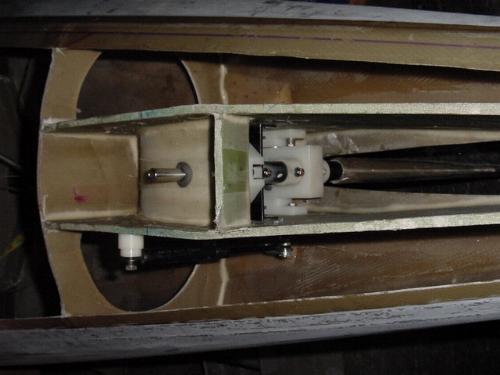

Above: John's water rudder installation.
Note, the additional BH's at the top isolate the control cables and tiller
pulley from the water well.
See post 997 in the "Hangar."

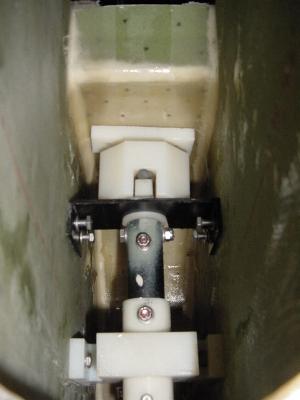

Above: View of water rudder BH looking up from underneath.

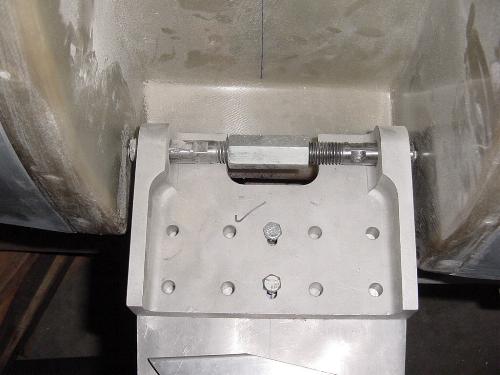

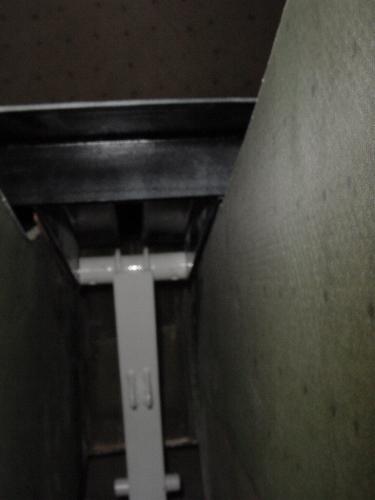

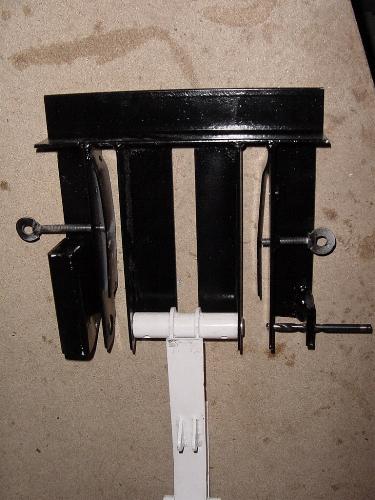

John sent the following photos
of the MLG fixtures he will loan out to you. Click on photos to enlarge.
